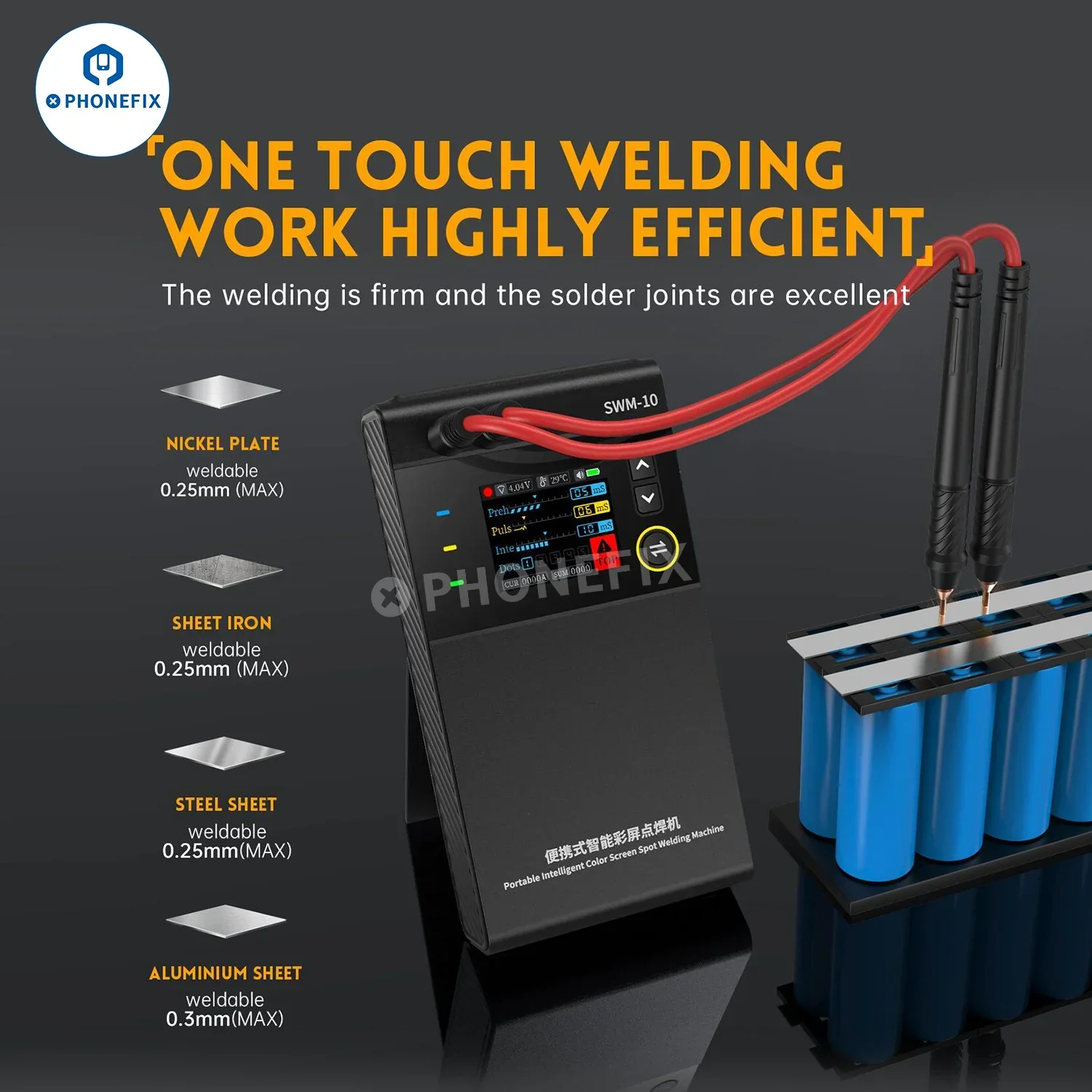

FNIRSI SWM-10 portable handheld spot welding machine double pulse spot welder suitable for precision welding of mobile phone electronic components, battery plate replacement, lithium battery nickel sheet, etc.

SWM-01 handheld spot welding machine with double pulse adjustment suitable for precision welding during battery repair. Using high-magnification lithium batteries as power source, it can be used to weld nickel sheets, iron sheets, stainless steel sheets, etc., with a maximum welding thickness of 0.25mm and a welding current of 1200A. Used to weld the battery protection plate when replacing the battery.

Features:
1. SWM-10 portable handheld spot welding machine is an efficient, convenient and easy-to-carry spot welding tool.
2. Using double pulse spot welding technology, the welding is more stable and firm, and it also has a charging function.
3. 5000mah power lithium battery, long-lasting battery life.
4. Equipped with a 1.8-inch FFT high-definition LCD color screen, the display is clear and the status is clear at a glance. It is smarter, more accurate and more user-friendly.
5. Built-in intelligent temperature control probe, over-temperature, low voltage and short circuit protection.
6. Customized settings for preheating, pulse, interval, and number of connection points to make welding more stable and firm.

Specification:
Name: Portable Spot Welding Machine.
Model: SWM-10
Capacity: 5000mAh.
Charge: 5V/2.1A.
Discharge: 5V/2.1A.
Welding materials: Nickel sheet, iron sheet, stainless. steelsheet, aluminum sheet.
Welding thickness: 0.25mm.
Maximum welding current: 1200A
Gear: 4 combination gear adjustment.
Dimension: 155mm*82mm*28mm.
Usage: Nickel sheet, iron sheet, stainless steel sheet, aluminum sheet.

Package includes:
1x Spot welding machine
2x Spot welding pen
1x Nickel sheets
2x Spare needles
1x USB charging cable
1x Manual
