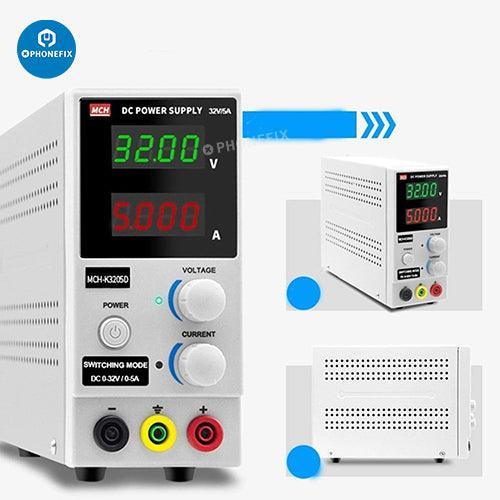

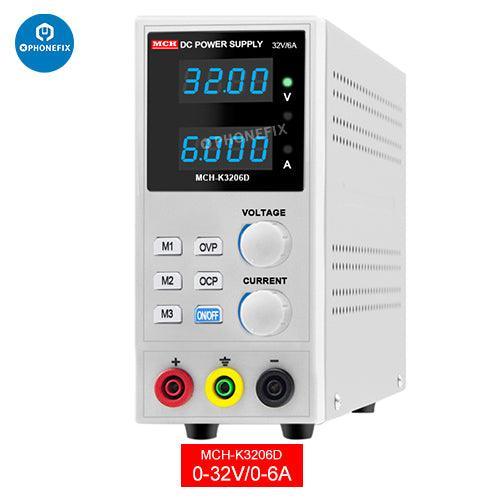

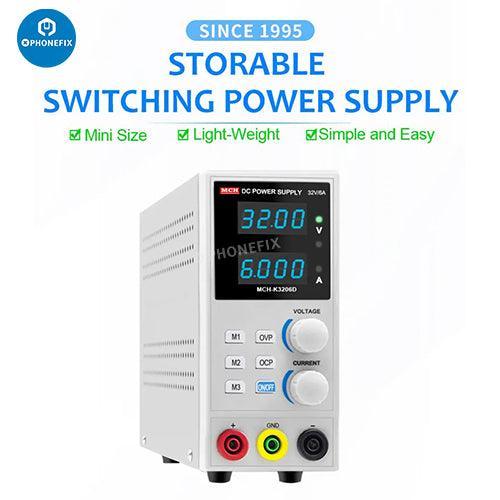

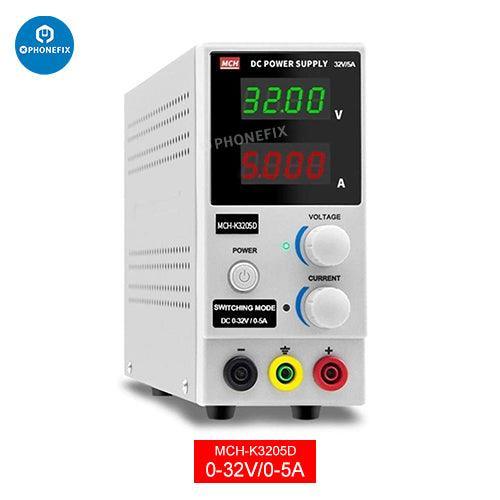

MCH-K3202/3/5/6D Adjustable DC Power Supply Phone Test Tool
MCH-K3202D K3203D K3205D K3206D Variable DC Power Supply 32V 2A 3A 5A 6A 4 Digits Display and Resolution LED Storage Programmable Fine Tune Regulator DC Power Supply for Phone Laptop Repair.
Features:
Advantage:
Parameters:
Features:
- Adjustable current and voltage.
- 3 sets of data storage(M1/M2/M3).
- Output confirmation switch.
- Continuous output at full load.
- With OCP (overcurrent) 1 OVP (overvoltage) output protection function.
- The current 1 voltage is continuously adjustable within the nominal value.
- 4 Digits display.
Advantage:
- Have complete operating protection function.
- Highly efficient, low ripple, small volume, light weight.
- Double display voltage, current, and high precision.
- Voltage stabilization, current limiting, simple operation.
- 5.Dual voltage input and convenient choice.
- Temperature control fan heat dissipation, low noise.
- 7.Double potential meter more precise adjustment.
Parameters:
- Input voltage: AC 220V 50/60Hz
- Output voltage: 0 ~ 32V
- Output current: 0 ~ 6A /5A/3A/2A
- Voltage resolution: 100mV
- Current resolution: 10mA
- Output Voltage ranges from 0 to rating voltage with continuous adjustment.
- Operation Temperature & Humidity: 0 ~ 40ā, RH<80%.
- Storage Temperature & Humidity: -10 ~ 70ā, RH<70%.
