GigE Vision Industrial Cameras, 1/3" CMOS, 0.36 MP, Global Shutter

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18
Product image 19
Product image 20
Product image 21
Product image 22
Product image 23
Product image 24
Product image 25
Product image 26
Product image 27
Product image 28

GigE Vision Industrial Cameras, 1/3" CMOS, 0.36 MP, Global Shutter

GigE Vision Industrial Cameras, 1/3" CMOS, 0.36 MP, Global Shutter

GigE vision industrial camera, Monochrome, resolution of 752X480 (0.36MP), 1/3" CMOS, pixel size 6.0Ī¼m x 6.0Ī¼m, max. frame rate 249fps, Global shutter, optional 8-bit, 10-bit or 12-bit depth, GigE interface with long transmission distance, high cost performance, use advanced indsutrial image sensor, superior image quality and high resolution.
Ā
GigEĀ Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.
Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

Package Include:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply
Ā
Industrial Camera Parameters:

Model

HT-GE31GM-T-CL

Sensor

1/3" CMOS

Shutter Type

Global Shutter

Camera Type

Monochrome

Pixel Size

6.0X6.0Ī¼m

Effective Pixels

0.36 MP

Resolution @FPS

752X480@108FPS

640X480@124FPS

320X240 @249FPS

Pixel Bit Depth

12bit

Sensitivity

4.8V/lux-sec 550nm

GPIO

6-pin Hirose Connector

Acquisition

Continuity/Soft Trigger/Hard Trigger

Maximum Gain (multiple)

4

Exposure Time (ms)

0.065~57

Filters

NONE

Frame Buffer

32M Bytes

Custom Data

2K Bytes

Video Output Format

Bayer8态Bayer12态Mono8态Mono12态Mono16态RGB8态RGB32态RGB48

Visual Standard Protocol

GigE Vision 态GenICam

Lens Interface

CĀ Mouth

Data Interface

RJ45 Gigabit Ethernet interface

Power Supply

12V(OptionalĀ POE Power Supply)

Power

<2.5W

Dimensions

29(mm)X29(mm)X40(mm)

Weight

< 75g

Operating Temperature

0~50 Degrees

Operating System

Support WIN7/8/10 32&64 System; PC Linux System

Driver

Directshow; Halcon; Labview; OCX; TWAIN Component

Programming Ianguage

C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV

Other Functions

Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
Machine Vision Software:
Support Halcon, OpenCV, LabView, Matlab, Python, etc.
GigE Vision Industrial Cameras, 1/3 CMOS, 0.36 MP, Global
Demo Source Code:

GigE Vision Industrial Cameras, 1/3 CMOS, 0.36 MP, Global

Hardware Trigger Line Sequence:

GigE Vision Industrial Cameras, 1/3 CMOS, 0.36 MP, Global

Ā

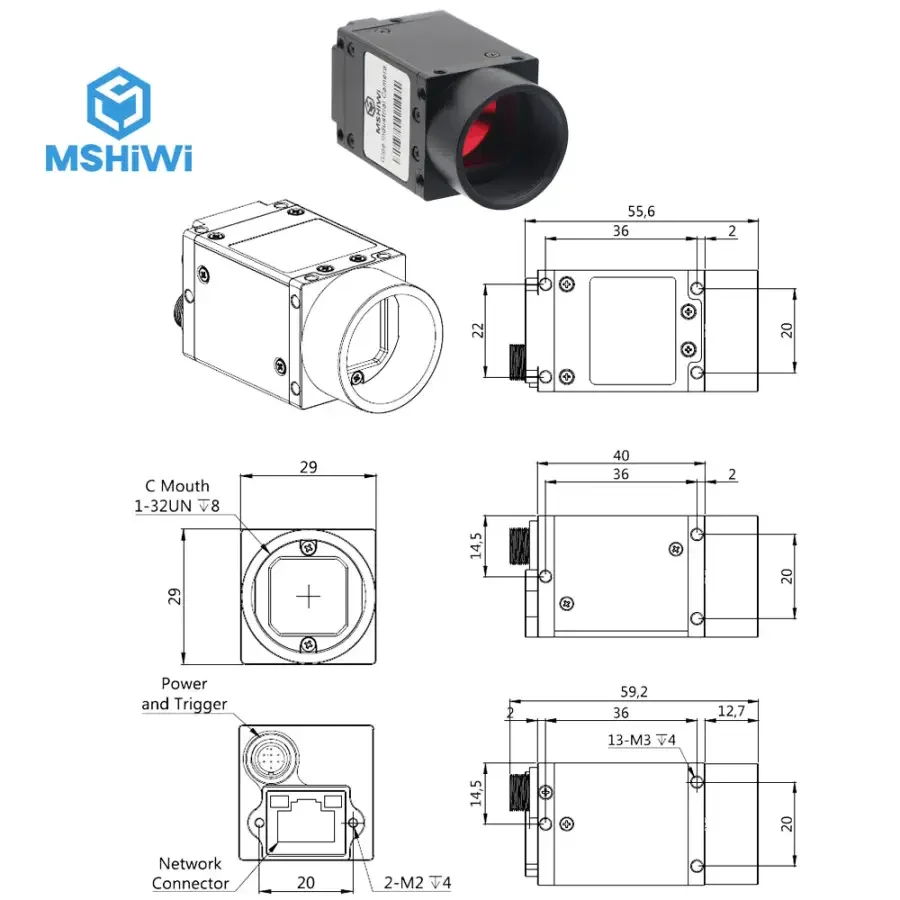

Camera Size:
Ā

GigE Vision Industrial Cameras, 1/3 CMOS, 0.36 MP, Global

Ā
Product Packing List:
Ā

GigE Vision Industrial Cameras, 1/3 CMOS, 0.36 MP, Global

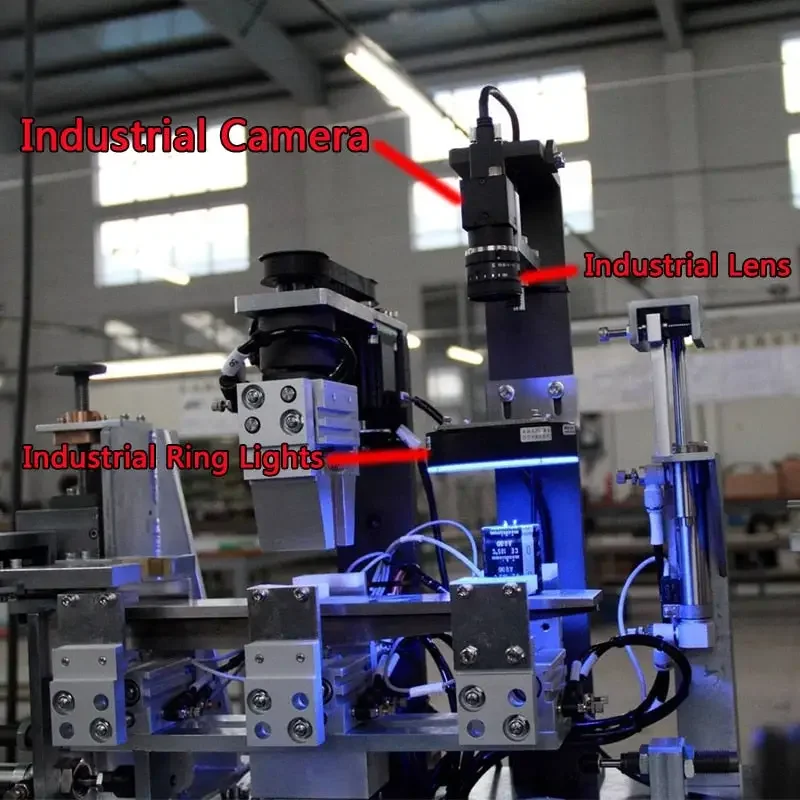

Picture Case Show:

GigE Vision Industrial Cameras, 1/3 CMOS, 0.36 MP, Global

Ā

Ā


Ā

Select Option
From $68.25

Original: $195.00

-65%
GigE Vision Industrial Cameras, 1/3" CMOS, 0.36 MP, Global Shutterā€”

$195.00

$68.25
